Building entries

Single-line building package

For buildings without a basement

ESH Basic FUBO BHPxm

Add to wish listAdd to wish list
Single-line building package - For buildings without a basement
USP
  • suitable for all standard gas house entry combinations
  • duct system checked for pressure tightness
  • easy integration of the vapour barrier using the adhesive ribbon
Building package in the form of a single-line building entry system suitable for utility feed-in of gas, water or electric power.
Single-line building package - For buildings without a basement

Facts

Advantages:

  • can be installed easily and quickly on-site
  • Continuous duct connection up to the main supply lines at the edge of the property possible

Scope of delivery:

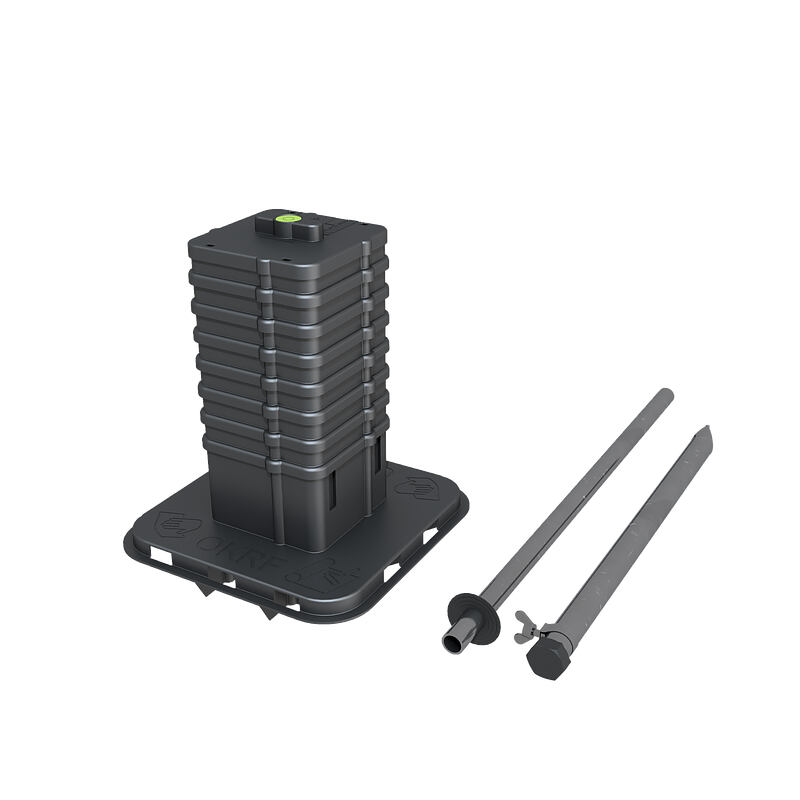

  • 1 piece of basic unit, including adhesive ribbon
  • 1 piece of height-adjustable installation fixture with flanges as water barrier
  • 1 piece of spiral hose 14078, including sleeve pipe and mounted 3-ribbed seal
  • 1 piece of ESH Basic MBK SR1 seal insert
  • 1 piece of sealing element for drinking water SDW 1x32/40/50

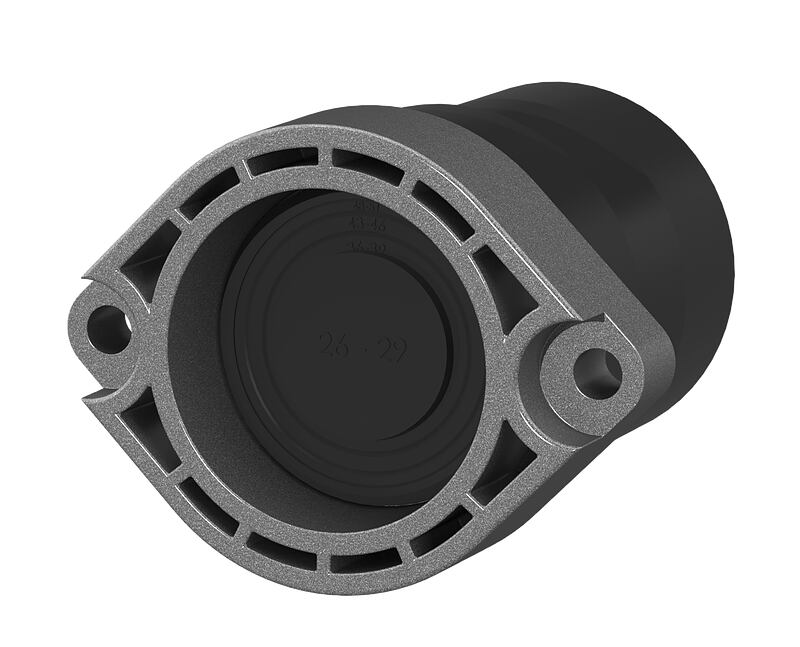

  • 1 piece of sealing element for electricity SDE 1x26-29/36-39/43-46/48-51

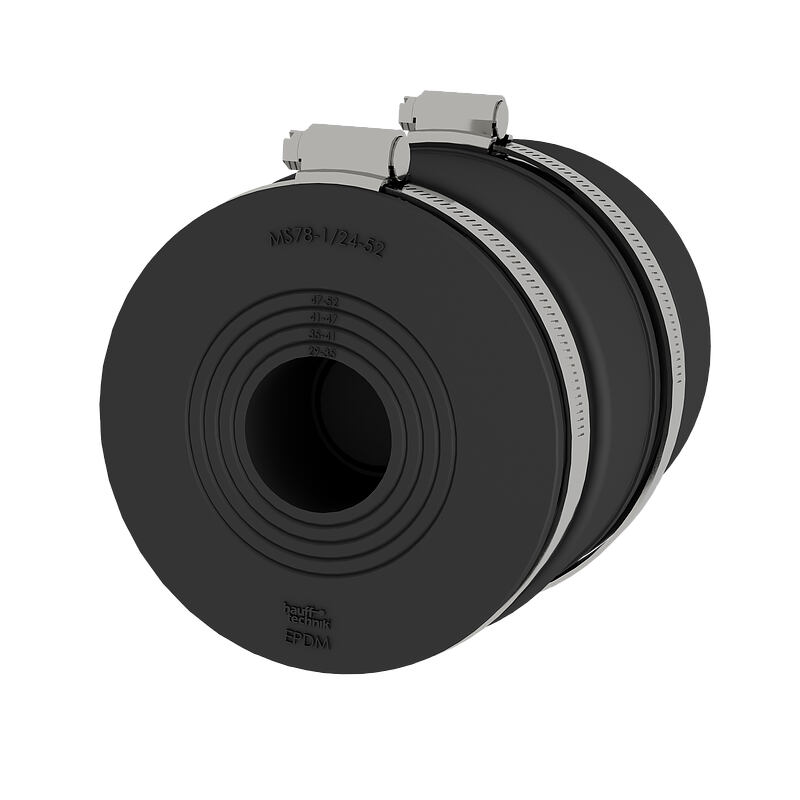

  • 1 piece of sleeve cap MS78U 1x24-52 for electricity or water
  • 1 piece of GMT35 lubricant

Properties:

  • DVGW-certified
  • variable height adaptation to the finished floor level
  • 50-mm surrounding flange for connecting the vapour barrier

Application range:

  • Water exposure class DIN 18533: W1-E
  • Waterproof concrete stress class 1 and 2

Tightness:

  • gastight and watertight to 1.0 bar

Tests/Standards:

  • DVGW VP 601
Downloads

Brochures

Technical drawings

Installation instructions

Test reports

Data sheet & tender specification

For download of data sheet and tender specification please configurate the product in the section below and download via the symbol Download symbol

Variants

Hose length (m) Article code Packing unit Article number GTIN
3.0 ESH Basic FUBO BHP3m 1 3030474697 4052487240710
Download of data sheet and tender specification
title=
3.0 ESH Basic FUBO BHP3m 6 3030474697 4052487240727
Download of data sheet and tender specification
title=
3.0 ESH Basic FUBO BHP3m 12 3030474697 4052487243414
Download of data sheet and tender specification
title=
6.0 ESH Basic FUBO BHP6m 1 3030474698 4052487240734
Download of data sheet and tender specification
title=
6.0 ESH Basic FUBO BHP6m 4 3030474698 4052487243124
Download of data sheet and tender specification
title=
6.0 ESH Basic FUBO BHP6m 8 3030474698 4052487243421
Download of data sheet and tender specification
title=
10.0 ESH Basic FUBO BHP10m 1 3030474699 4052487240741
Download of data sheet and tender specification
title=
10.0 ESH Basic FUBO BHP10m 4 3030474699 4052487243131
Download of data sheet and tender specification
title=
10.0 ESH Basic FUBO BHP10m 8 3030474699 4052487243438
Download of data sheet and tender specification
title=
Expand

Configurator

ESH to inside outer wall (Dimension A): m
House wall to property line (Dimension B):m

image/svg+xml Dimension B House wall to property line Dimension A ESH to inside outer wall R=1m

Auf Grundlage Ihrer Eingaben konnte keine mögliche Konfiguration gefunden werden. Es können Produkte mit einer maximalen Schlauchlänge von 25 Metern konfiguriert werden.

Your individual article designation:

Your individual article number:

Tender specifications / PricesAdd to wish list
Download of data sheet
Tender specifications: Download TextTextDownload WordWord

We cannot guarantee the feasibility of the configuration you have entered. If you have sent an enquiry, we will then check the configuration you have chosen again.
